The latest innovation in seam control equipment - Accuseam 2000 combines the technology of the WACO VSM II Video Seam Monitor with the Accuseam 2000 software and interface, resulting in automatic, accurate seam measurements in under 3 seconds.

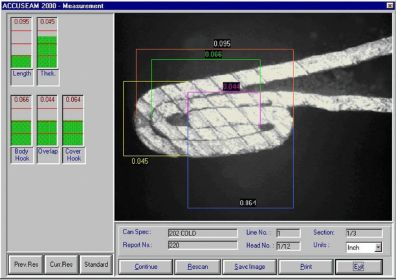

The Accuseam 2000 digitally scans, analyzes, and measures the can seam, then compares the results against a user-defined specification. Out-of-spec readings are highlighted on the monitor for corrective action by the operator. The Accuseam 2000 improves speed, accuracy, and virtually eliminates human error and misinterpretation.
Key Features:
Images of can seams with their dimensions can be saved on the computer hard drive for future reference. This feature is invaluable in documenting seam problems. Up to 16 saved images can be displayed on the monitor simultaneously for easy comparison.
Multi-level password protection ensures that only authorized personnel will have access to the system.
Measurement data is saved to a data base for organization into reports, graphs, and SPC analysis.
The Accuseam 2000 features a modular design which allows QC departments to purchase the system in sections. The VSM II could be purchased first due to its versatility as a stand-alone instrument or as part of the Accuseam 2000. Software, interface, and gauges can be added as budgets permit. A variety of hardware options and configurations are available to fit the needs of users. External gauges for countersink and seam thickness are available, and may be recommended for certain installations.
