WACO Q by V Can End Profile Analyzer Scans a Profile of the Measured Can End

Q by V End Profile Analyzer

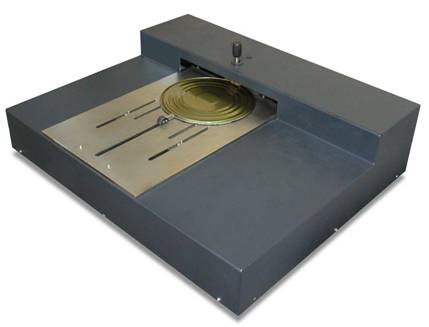

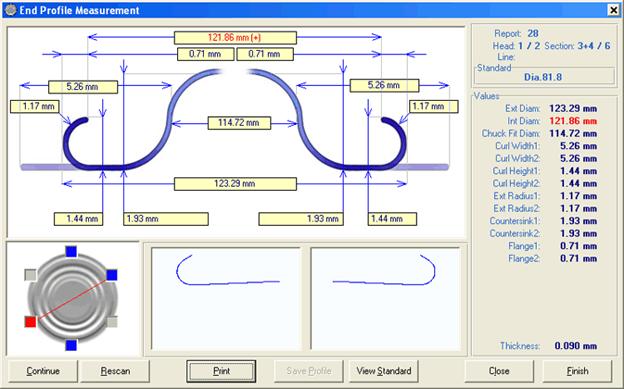

The End Profile Analyzer uses laser profiling technology in order to scan a profile of the edge of the measured can end. With laser profiling technology, the EPA is able to measure the Curl Width (along with other measurements) using a non-contact optical laser measurement system.The sanitary end is placed within the optical unit. A contact driven gauge is used to perform measurements such as external diameter. This measurement is combined with the non-contact measurements in order to produce the following measurement values:
End Thickness External diameter Internal Diameter Chuck Fit Diameter Curl Width Curl Height External Curl Radius Countersink End flanges	End Thickness Gauge
Key Benefits: Quick measurement (under 1 second). High accuracy. Non-contact measurements for most values. Non-destructive measurement of Curl Width. Can measure previously difficult to measure values, such as curl width and curl radius. Multilingual! Translations available to most languages. Runs under Windows 2000/XPTM Optional gauge attachments (Thickness gauge).

Specifications

All specifications are subject to change without prior notice.
