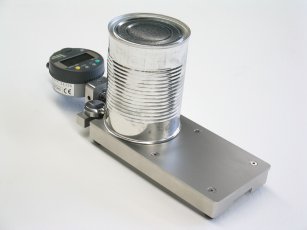

| Similar
in design to the WACO Seam Thickness Gauge, this gauge is designed to measure
the flange width of open ended cans. The spring loaded can guides
automatically position the can for fast, accurate, and repeatable measurements.
Constructed of machined stainless steel for corrosion resistance and long
life. The base plate is reversible to double the wear life of the
surface. The WACO Flange Width Gauge is suited for round cans with diameters
from 2” to 6.5”.
Cat. No.
Description
10717-00
WACO Flange Width Gauge, without indicator
10717-05
WACO Flange Width Gauge, with digital indicator, .0001”/.001mm
10717-10
WACO Flange Width Gauge, with digital indicator, .0005”/.01mm
10717-50
Calibration gauge for flange width |
